SPT70HV-270/70kg/Controllable 270°/SPT Servo/Large torque/Large angle/Metal gear/Digital servo

 Adaptive Range
SPT70HV-270---------------Parameter Update Date:2019/8/25
 Brand:  SPT Servo  Potentiometer:  Mechanics
 Motor:  Core  Voltage Range:  4.8V/6.0V/8.4V
 Neutral Point:  1500μs  Signal Frequency:  330Hz
 PWM Voltage:  3.3V-5.0V  PWM Voltage:  3.3V-5.0V
 Feedback Angle:  No  Operating Temperature:  -10℃-50℃
 Cycle:  20ms  Dead band:  4μs
 Default Direction:  CCW  Yes / no Lock:  Lock
 Remote control Angle:  135°  500-2500μs Angle:  270° / PWM
 Quiescent Current:  60mAh  Rated Current:  2A

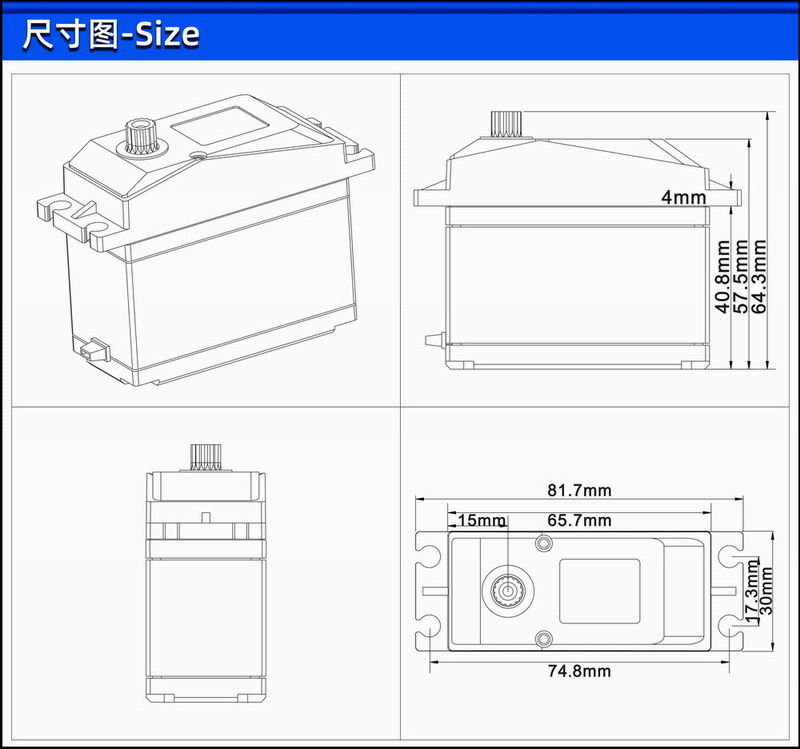

 Blocking Current:  4.5A  Weight / Dimensions:  200g / 65.7X30X57mm
 Output Gear:  Savox0236 15T  Gear Material:  All Metal Gear
 Shell Material:  Half Aluminum Shell  Bearing:  2BB
 Connector Wire Length:  260MM  line Definition:  Brown-/Red+/Orange s
 Operating Speed:
 /  6.0V/ 0.20''/60°  7.4V/ 0.16''/60°
 Stall Torque:
 /  6.0V/56 kg.cm  7.4V/70 kg.cm
